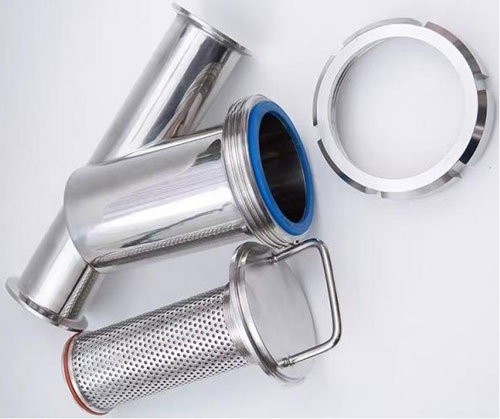

Y-Type Filter
Specifications: φ19 to φ102
Maximum pressure: 0.8Mpa
Medium temperature: -10℃ to 120℃ (140℃ for short-term or disinfection)
Shell material: 304/316
Specifications: φ19 to φ102
Maximum pressure: 0.8Mpa
Medium temperature: -10℃ to 120℃ (140℃ for short-term or disinfection)
Shell material: 304/316
Inner surface contacting product: Ra≤0.8μm
Seals: SIR (silicone), PDM (ethylene propylene diene monomer), PTFE (polytetrafluoroethylene)
Interface form: welding, thread, quick-release, flange
Product application: Particle filtration of various liquids, protection of compressors, water pumps, instruments and other equipment for initial filtration and protection.

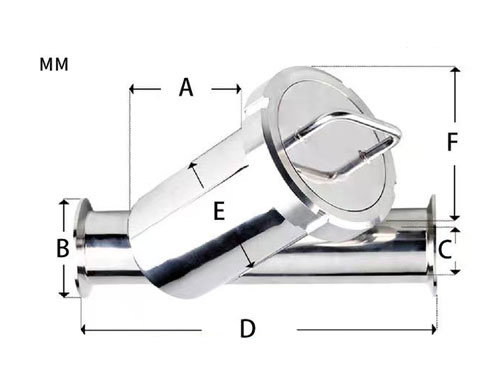

| Nominal diameter | A | B | C | D | E | F | Weight (g) |
| φ19 | 92 | 50.5 | 16 | 160 | 38 | 71 | 1023 |
| φ25 | 92 | 50.5 | 22 | 160 | 38 | 71 | 1026 |
| φ32 | 92 | 50.5 | 29 | 177 | 51 | 81 | 1292 |
| φ38 | 92 | 50.5 | 35 | 202 | 56 | 81 | 1187 |
| φ45 | 110 | 64 | 42 | 211 | 64 | 98 | 2000 |
| φ51 | 120 | 64 | 48 | 226 | 75 | 110 | 2203 |
| φ57 | 150 | 77.5 | 53 | 270 | 85 | 125 | 3529 |
| φ63 | 150 | 77.5 | 59 | 267 | 88 | 125 | 3400 |
| φ76 | 163 | 91 | 73 | 302 | 102 | 137 | 4260 |
| φ89 | 210 | 106 | 85 | 340 | 121 | 177 | 7490 |
*Warm Tips: This product is manually measured and there may be an error of 1 to 3mm, which is within the normal range. Please understand!
