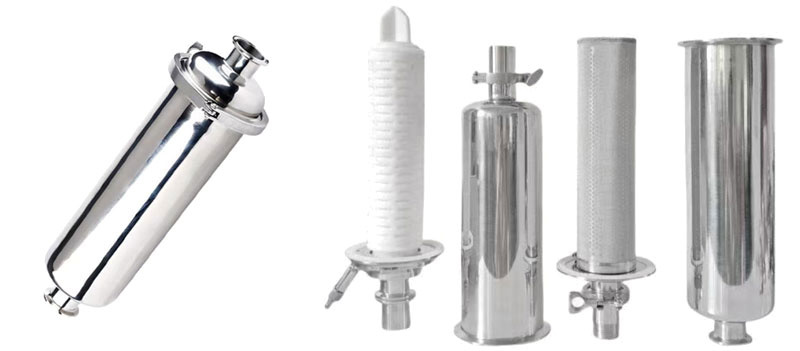

Straight-Through Pipe Filter

Specifications: φ102 to φ159

Maximum pressure: 0.8Mpa

Medium temperature: -10℃ to 120℃ (140℃ for short-term or disinfection)

Shell material: 304/316

Request A Quote

Additional Information

Advantages

Specification

Downloads

Inner surface contacting product: Ra≤0.8μm

Seals: SIR (silicone), PDM (ethylene propylene diene monomer), PTFE (polytetrafluoroethylene)

Interface form: welding, thread, quick-release, flange

Product application: Particle filtration of various liquids, protection of compressors, water pumps, instruments and other equipment for initial filtration and protection.

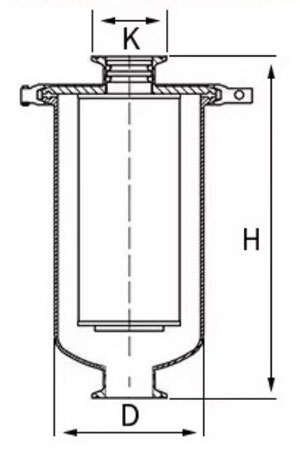

Straight pipe filter dimensions
Specifications	D	K	H
Φ102-5"	Ф102	50.5	187
Φ102-10"	Ф102	50.5	320
Ф133-5"	Ф133	64	187
Ф133-10"	Ф133	64	320
Φ159-10"	Ф159	64	320
