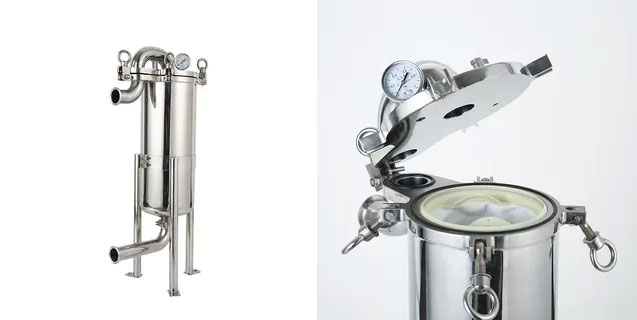

Single Bag Filter

Specifications: No. 1 bag, No. 2 bag

Maximum pressure: 0.8Mpa

Medium temperature: -10℃ to 120℃ (140℃ for short-term or disinfection)

Shell material: 304/316

Request A Quote

Additional Information

Advantages

Specification

Downloads

Inner surface contact product: Ra≤0.8μm

Seal: SIR (silicone), PDM (ethylene propylene diene monomer), PTFE (polytetrafluoroethylene)

Interface form: thread, quick-release, flange

Product application: Chinese medicine, coconut juice, honey, beverages, sauces, pure water, edible oil, glycerin, resin, paint, coating, ink and other fluids, play a role in the early coarse filtration.

Top Entry Bag Filter
\	Cover
\	Bag No. 1	Bag No. 2
Total height	790	1110
The distance from inlet to center	275
Shell diameter	Φ204
The height from inlet tu ground	620	940
The height from outlet tu ground	200
In-outletN1、N2 Size	1.5" or 2"
Stabilizer blade	550	700
Max flow m³/h	20	40
