Angle Filter

Specifications: φ89 to φ102

Maximum pressure: 0.8Mpa

Medium temperature: -10℃ to 120℃ (140℃ for short-term or disinfection)

Shell material: 304/316

Request A Quote

Additional Information

Advantages

Specification

Downloads

Inner surface contacting product: Ra≤0.8μm

Seals: SIR (silicone), PDM (ethylene propylene diene monomer), PTFE (polytetrafluoroethylene)

Interface form: welding, thread, quick-release, flange

Product application: Particle filtration of various liquids, protection of compressors, water pumps, instruments and other equipment for initial filtration and protection.

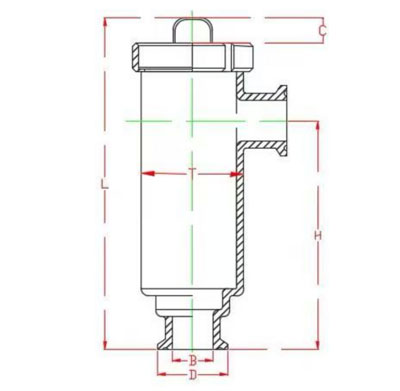

Specification	D	B	T	L	H	C	Weight
Φ38	50.5	35	89	390	250	40	3kg
Φ51	64	48	102	390	260	40	3.5kg
φ63	77.5	59.5	133	550	395	40	5.5kg
Φ89	106	85	159	600	435	40	9kg
