Specifications: DN15 to DN50
Connection: welding, quick installation
Working pressure: 0-1.0Mpa
Working temperature: -10℃ to 120℃ (140℃ for short-term or disinfection)
Material: 304/316L
Inner surface contacting product: Ra≤0.8μm
External surface treatment: polishing
Seal: EPDM (ethylene propylene diene monomer), PTFE (polytetrafluoroethylene)

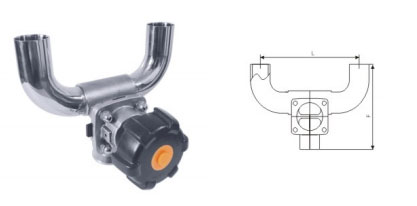

| Size | L | F | Size | L | F |
| Φ12.7×12.7 | Custom made | Custom made | Φ32×25.4 | 163 | 149 |
| Φ19×12.7 | Custom made | Custom made | Φ38×25.4 | 181 | 164 |
| Φ25.4×12.7 | Custom made | Custom made | Φ50.8×25.4 | 246 | 193 |
| Φ38×12.7 | Custom made | Custom made | Φ32×32 | 188 | 172 |
| Φ19×19 | Custom made | Custom made | Φ38×32 | 207 | 210 |
| Φ25.4× 19 | 135 | 119 | Φ50.8×32 | 265 | 214 |
| Φ32×19 | 138 | 130 | Φ38×38 | 207 | 210 |
| Φ38× 19 | 156 | 142 | Φ50.8×38 | 265 | 214 |
| Φ50.8×19 | 183 | 183 | Φ50.8×38 | 283 | 239 |
| Φ63.5×19 | 195 | 195 | Φ63×63 | 315 | 280 |
| Φ25.4×25.4 | 160 | 142 | Φ76×63 | 325 | 285 |

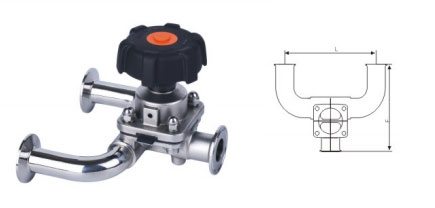

| Size | L | F | Size | L | F |
| Φ12.7×12.7 | Custom made | Custom made | Φ32×25.4 | 163 | 170 |
| Φ19×12.7 | Custom made | Custom made | Φ38×25.4 | 181 | 185 |
| Φ25.4×12.7 | Custom made | Custom made | Φ50.8×25.4 | 246 | 214 |
| Φ38×12.7 | Custom made | Custom made | Φ32×32 | 188 | 193 |
| Φ19×19 | Custom made | Custom made | Φ38×32 | 207 | 231 |
| Φ25.4×19 | 135 | 140 | Φ50.8×32 | 265 | 235 |
| Φ32×19 | 138 | 151 | Φ38×38 | 207 | 231 |
| Φ38×19 | 156 | 163 | Φ50.8×38 | 265 | 235 |
| Φ50.8×19 | 183 | 204 | Φ50.8×50.8 | 283 | 260 |
| Φ63.5×19 | 195 | 249 | Φ63×63 | 315 | 300 |
| Φ25.4×25.4 | 160 | 163 | Φ76×63 | 325 | 310 |
