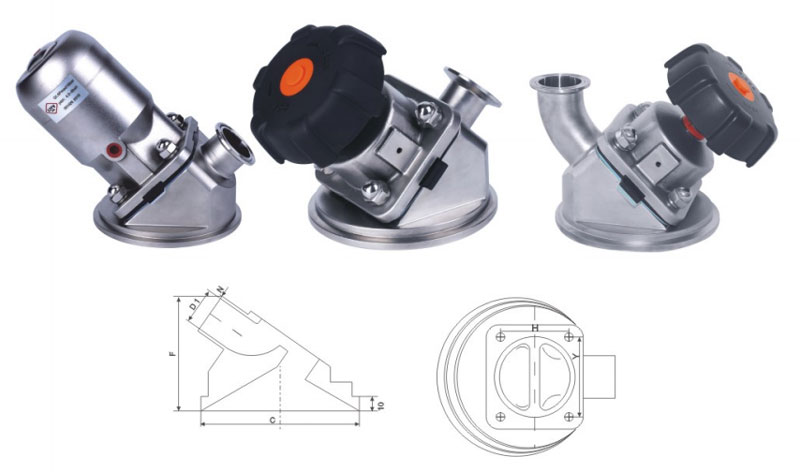

Tank Bottom Diaphragm Valve

Manual tank bottom valve specifications: Φ25mm to Φ102mm

Pneumatic tank bottom valve specifications: Φ25mm to Φ51mm

Connection methods: welding, thread, quick release, flange

Request A Quote

Additional Information

Advantages

Specification

Downloads

Working pressure: 0-1.0Mpa

Pneumatic tank bottom valve control pressure: 0.5-0.8Mpa

Working temperature: -10℃ to 120℃ (140℃ for short periods or disinfection)

Material: 304/316L

Inner surface contacting product: Ra≤0.8μm

External surface treatment: polishing

Seals: EPDM (ethylene propylene diene monomer), PTFE (polytetrafluoroethylene)

Rexton Catalogue

Download

Get a Quote

Rexton'S Proud Manufacturing Process

Strictly On-Point Quality Requirements

Strictly control the process flow, interlocking to ensure the quality of finished products

Guarantee 100% staff quality training, with self-inspection awareness and process awareness

Process quality control from raw materials to final inspection, marking and packaging

All necessary production process data is available and each product has full traceability

All gauges are calibrated by international organizations and conform to international standards

All BPE standard products are fully inspected to ensure that they comply with ASME BPE standard
