Pneumatic ball valve specifications: Φ19 to Φ102"
Connection methods: welding, thread, quick release, flange
Working pressure: 1.6Mpa
Working temperature: -10℃ to 120℃ (140℃ for short-term or disinfection)
Material: 304/316L
Inner surface contacting product: Ra≤0.8μm
External surface treatment: polishing
Seals: EPDM (ethylene propylene diene monomer), PTFE (polytetrafluoroethylene)
Product name: Stainless steel electric quick-install butterfly valve
Process: sanitary grade
Material: 304/316
Nominal diameter: Φ19-Φ102"
Surface treatment: polishing
Application areas: widely used in beer industry, dairy industry, pharmaceutical industry, beverage industry, machinery manufacturing industry and chemical industry.

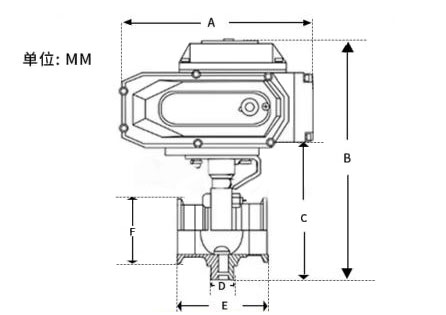

| Nominal diameter | A | B | C | D | E | F | g |
| φ19 | 173 | 325 | 165 | 20 | 66 | 50.5 | 3800 |
| φ25 | 173 | 325 | 165 | 20 | 66 | 50.5 | 3800 |
| φ32 | 173 | 325 | 165 | 20 | 66 | 50.5 | 3800 |
| φ38 | 173 | 325 | 165 | 20 | 70 | 50.5 | 3800 |
| φ45 | 167 | 325 | 150 | 20 | 70 | 64 | / |
| φ51 | 167 | 325 | 190 | 22 | 70 | 64 | 4100 |
| φ57 | 167 | 325 | 190 | 22 | 76 | 77.5 | 4500 |
| φ63 | 167 | 325 | 190 | 22 | 76 | 77.5 | 4500 |
| φ76 | 173 | 355 | 219 | 21 | 76 | 91 | 4800 |
| φ89 | 173 | 391 | 260 | 21 | 80 | 106 | 5500 |
| φ102 | 173 | 355 | 215 | 21 | 86 | 119 | 6000 |
