Three-Piece Ball Valve
Three-piece ball valve specifications: ½" to 6"
Connection: threaded Working pressure: 0-1.0Mpa
Working temperature: -10℃ to 120℃ (140℃ for short periods or disinfection)
Three-piece ball valve specifications: ½" to 6"
Connection: threaded Working pressure: 0-1.0Mpa
Working temperature: -10℃ to 120℃ (140℃ for short periods or disinfection)
Material: 304/316L
Inner surface contacting product: Ra≤0.8μm
External surface treatment: polished
Seals: EPDM (ethylene propylene diene monomer), PTFE (polytetrafluoroethylene)

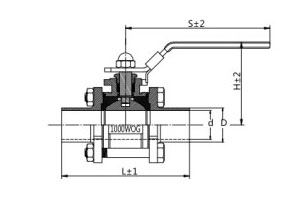

| Size | d | D | L | H | S |  |
| 1/2" | 9.4 | 12.7 | 90 | 60 | 132 | |
| 3/4" | 15.8 | 19.1 | 104 | 64.5 | 132 | |
| 1" | 22.1 | 25.4 | 115 | 69 | 165 | |
| 1 1/4" | 28.5 | 31.8 | 125 | 75 | 170 | |
| 1 1/2" | 34.8 | 38.1 | 140 | 89 | 194 | |
| 2" | 47.5 | 50.8 | 156 | 97 | 194 | |
| 2 1/2" | 59.5 | 63.5 | 198 | 127 | 252 | |
| 3" | 72.2 | 76.2 | 230 | 135 | 252 | |
| 4" | 97.6 | 101.6 | 242 | 159 | 332 | |
| 5" | 125 | 129 | 290 | 210 | 350 | |
| 6" | 150 | 154 | 340 | 249 | 430 |
| Size | d | D | L | H | S |  |
| 1/2" | 9.4 | 25.2 | 90 | 60 | 132 | |
| 3/4" | 16 | 50.5 | 104 | 64.5 | 132 | |
| 1" | 22.1 | 50.5 | 115 | 69 | 170 | |
| 1 1/4" | 28.5 | 50.5 | 125 | 75 | 170 | |
| 1 1/2" | 35 | 50.5 | 140 | 89 | 187 | |
| 2" | 47.5 | 64 | 156 | 97 | 217 | |
| 2 1/2" | 59.5 | 77.5 | 198 | 127 | 220 | |
| 3" | 72.2 | 91 | 230 | 135 | 320 | |
| 3 1/2" | 52 | 106 | 230 | 143 | 320 | |
| 4" | 97.6 | 119 | 242 | 159 | 332 | |
| 5" | 125 | 145 | 300 | 210 | 350 | |
| 6" | 150 | 183 | 350 | 249 | 430 |
