Product name: Stainless steel flange ball valve
Process: Sanitary grade
Surface treatment: Polishing
Material: 304/316L
Application areas: Widely used in beer industry, dairy industry, pharmaceutical industry, beverage industry, machinery manufacturing and chemical industry, etc.
Three-way ball valve specifications: DN15 to DN125
Connection methods: welding, thread, quick-install, flange
Working pressure: 1.6Mpa
Working temperature: -10℃ to 120℃ (140℃ for short-term or disinfection)
Material: 304/316L
Inner surface contacting product: Ra≤0.8μm
External surface treatment: polishing
Seals: EPDM (ethylene propylene diene monomer), PTFE (polytetrafluoroethylene)

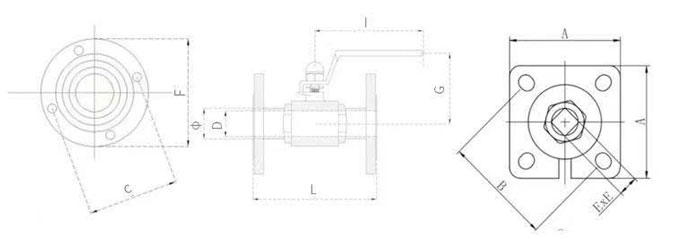

| Specifications | I | G | L | D | Φ | F | B |
| DN15 | 125 | 75 | 99 | 16 | 19 | 90 | F05 |
| DN20 | 138 | 78 | 116 | 22 | 25 | 100 | F05 |
| DN25 | 138 | 80 | 123 | 29 | 32 | 110 | F05 |
| DN32 | 154 | 95 | 138.5 | 35 | 38 | 130 | F05 |
| DN40 | 154 | 99 | 145 | 42 | 45 | 140 | F05 |
| DN50 | 170 | 105 | 168.5 | 52 | 57 | 155 | F05 |
| DN65 | 220 | 140 | 199 | 72 | 76 | 175 | F07 |
| DN80 | 290 | 145 | 239 | 85 | 89 | 190 | F07 |
| DN100 | 310 | 160 | 271 | 98 | 102 | 210 | F10 |
| DN125 | 447 | 215 | 330 | 125 | 133 | 240 | F10 |
